SPECIFICATIONS
Distortion Circuitry: Glass diode, back-to-back stack.
 Bypass: True bypass
 Gain Control Range: 8dB to 36dB.
EQ Center Frequencies:
 • Bass – 90 Hz +/- 11dB
• Mid – 750 Hz +/- 11dB
• Treble – 2.1 kHz +/- 12dB
 Signal To Noise Ratio:
• Minimum gain, 20 to 20kHz – 112dBV
• Minimum gain, 400 to 20kHz – 114dBV
• Maximum gain, 20 to 20kHz – 97.5dBV
• Maximum gain, 400 to 20kHz – 98 dBV THD @10mVrms input @ 1 kHz with 12 dB of gain: 0.15%
Max Output before Saturation: 0.6Vrms
 Input Impedance: 470k Ohms Output Impedance: 1k Ohms

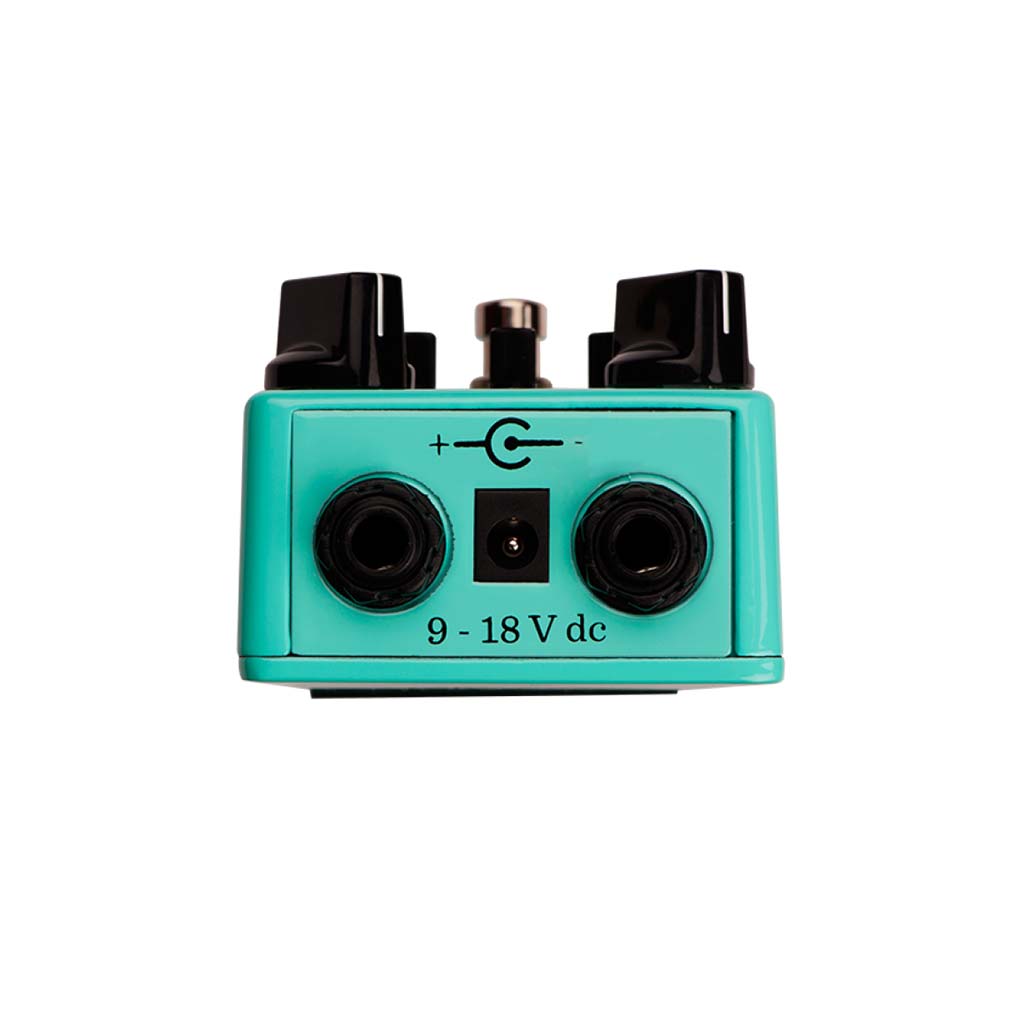

 Power: 9V battery or external 9 to 18V Regulated DC Adapter (center negative)
Current consumption: 4.5mA
Dimensions: 2.61″ X 4.90″ X 1.45″
Weight: 0.6 lb without battery
