Specifications
SUPPORTED SAMPLE RATES
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
MICROPHONE INPUTS
Frequency Response
20Hz – 20kHz ± 0.1dB
Dynamic Range
111dB (A-weighted)
THD+N
<0.0012%
Noise EIN
-128dB (A-weighted)
Maximum Input Level
9dBu (at minimum gain)
Gain Range
56dB
Impedance
3kΩ
LINE INPUTS
Frequency Response
20Hz – 20kHz ± 0.1dB
Dynamic Range
110.5dB (A-weighted)
THD+N
<0.002%
Maximum Input Level
22dBu (at minimum gain)
Gain Range
56dB
Impedance
60kΩ
INSTRUMENT INPUTS
Frequency Response
20Hz – 20kHz ± 0.1dB
Dynamic Range
110dB (A-weighted)
THD+N
<0.03%
Maximum Input Level
12.5dBu (at minimum gain)
Gain Range
56dB
Impedance
1.5MΩ
LINE/MONITOR OUTPUTS
Dynamic Range (Line Outputs)
108dB
THD+N
<0.002%
Maximum Output Level (0 dBFS)
15.5dBu
Impedance
430Ω
HEADPHONE OUTPUTS
Dynamic Range
104dB (A-weighted)
THD+N
<0.002%
Maximum Output Level
7dBu
Impedance
<1Ω
CHANNEL YOUR INNER PRODUCER

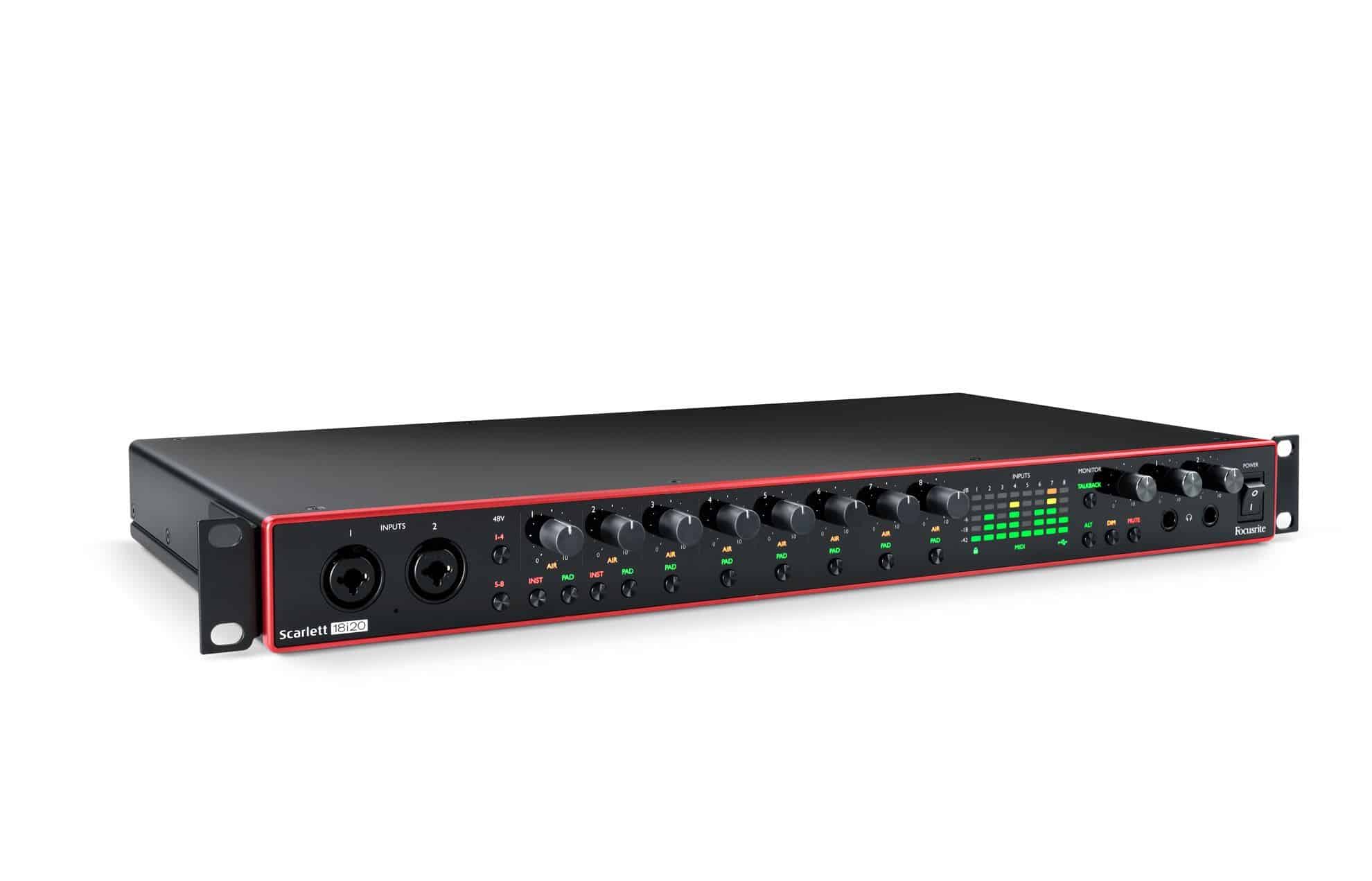

18i20’s high channel count and even higher audio quality are designed to give you all the ins and outs you need to get the best sound every time. Leave all your instruments plugged in for easy writing and recording or put the vast I/O to work in large recording sessions. Make anywhere your control room with the built-in talkback mic. Reference your recordings on multiple monitor setups with speaker switching. Wherever you take 18i20, you’re ready to produce.
YOUR RECORDINGS ARE 30 YEARS IN THE MAKING
We’ve been making mic preamps for 30 years, and the 3rd Gen mic pres are the best Scarlett has ever heard. The 24-bit/192kHz converters give your recordings clarity and detail. Air mode breathes life into vocals, adding unique high-end detail. Our decades of experience mean Scarlett sounds just like you.
DRUM UP SOME INCREDIBLE RECORDINGS
With ADAT, you can grow your recording capabilities even further. Want to mic up an entire drum kit? Add an eight-channel mic pre such as Scarlett OctoPre or Scarlett OctoPre Dynamic and never miss a beat.
THIS IS YOUR CUE
Focusrite Control makes it simple to route your audio and cue mix, loopback and monitor mixes, from your Mac®, PC, iPad®, iPhone® or iPod touch®. Send, stream, sample – simple.
OUR TECHNOLOGY IS SOUND
Incredibly reliable, Focusrite hardware won’t let you down. If, however, you come across a problem you can rely on our global support team and your two-year warranty to get it sorted. Sound.
Hitmaker Expansion
Create studio quality vocals, powerful guitars, luscious keys and huge drums, then mix and master with iconic Focusrite studio hardware – all in the box. Hitmaker Expansion is built to give you all the plug-ins you need to write, produce, mix and master your music in studio quality, featuring exclusive content from legendary Auto-Tune® creators Antares®, along with Brainworx®, Softube®, XLN Audio®, Relab and more.
Features:
- Eight of the best performing Scarlett mic preamps the range has ever heard – now with Air – for miking up guitars or recording vocals
- Two high headroom instrument inputs, for plugging your guitar or bass straight in
- Four monitor outs, featuring anti-thump tech and speaker switching
- Built-in talkback mic, for talking to the band from your studio
