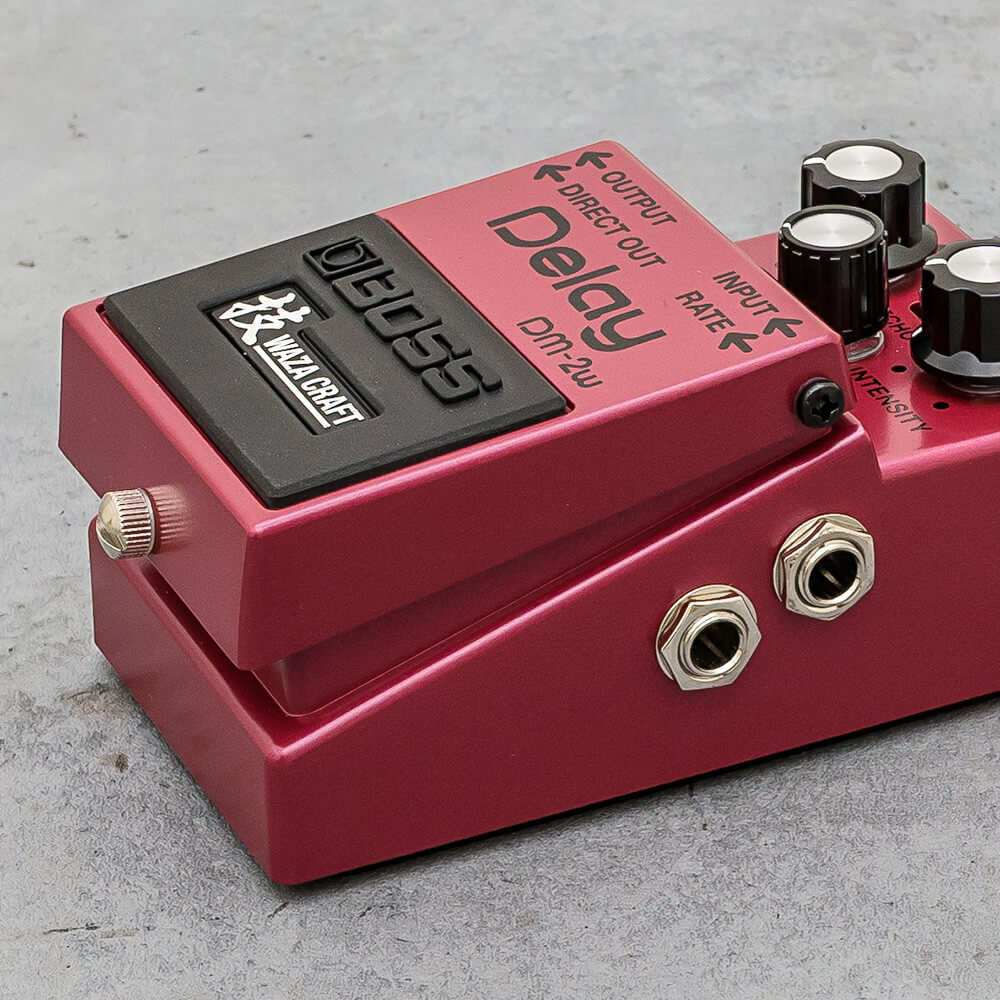

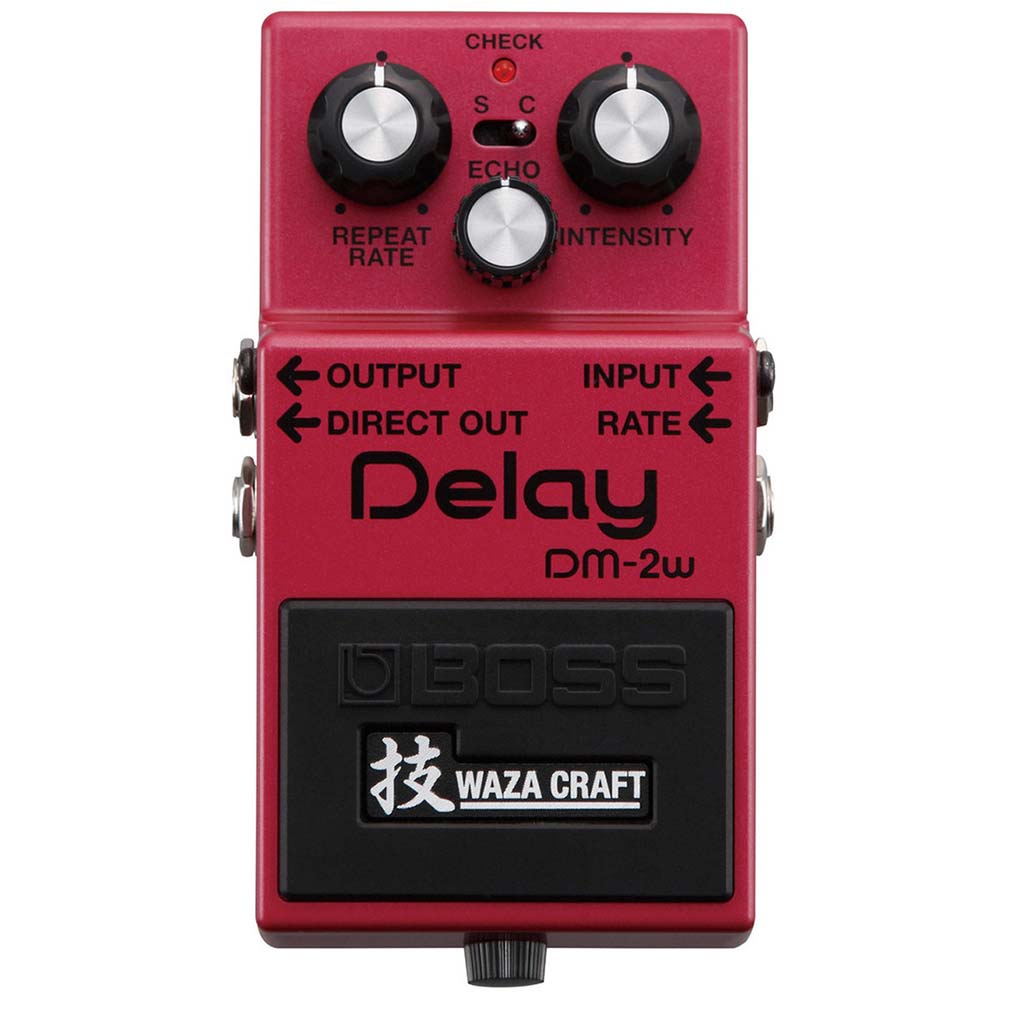

Boss DM-2W Waza Craft Analogue Delay Effects Pedal

Ever since being discontinued way back in 1984, the BOSS DM-2 Delay pedal has remained highly sought after by players everywhere for its warm, “bucket brigade” analog delay tone. Now, the DM is back! With the Waza Craft DM-2W, the coveted stomp has been reborn with switchable sound modes and greater versatility for today’s music styles.

Using 100-percent analog circuitry, the DM-2W’s Standard mode nails the lush sound and 20-300 ms delay range of the original DM-2. Flipping into Custom mode instantly changes the sound character to a cleaner analog tone with over twice the available delay time.


SKU DM-2W Categories , Tag Brand:
Specifications
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Delay Time
Standard Mode: 20 ms to 300 ms
Custom Mode: 40 ms to 800 ms
Controls
Pedal switch
REPEAT RATE knob
INTENSITY knob
ECHO knob
Mode switch
Indicator
CHECK indicator (Serves also as battery check indicator)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
RATE jack: 1/4-inch TRS phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw
35 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 15 hours
Carbon: Approx. 5 hours

Accessories
Owner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Expression pedal: Roland EV-5
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight
460 g
1 lbs. 1 oz.
